battery charger
Mastervolt EasyCharge Portable 4.3A

Mastervolt EasyCharge Portable 4.3A

€137,42 incl. VAT

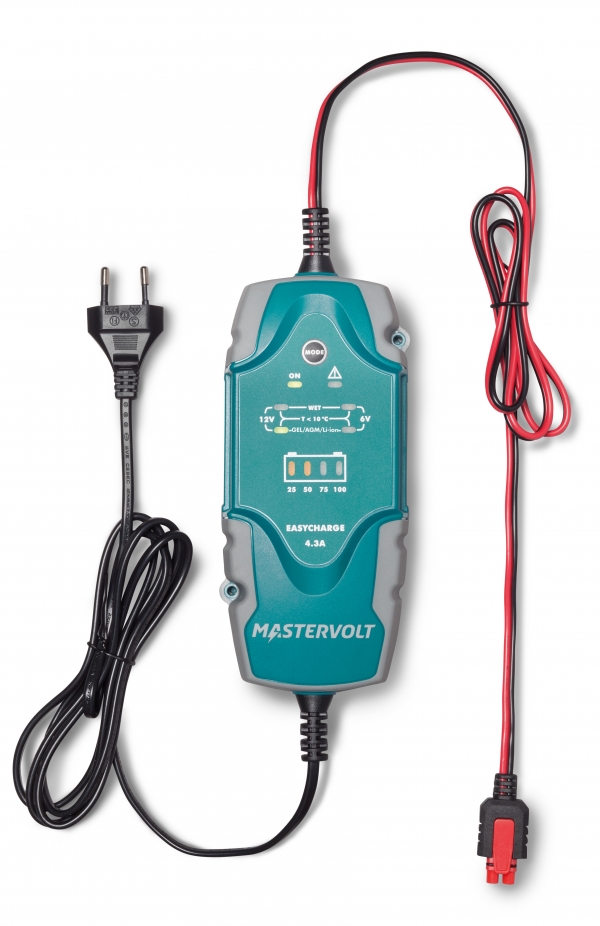

Waterproof, portable battery charger

For people on the move, the EasyCharge portable battery charger offers a rugged solution that can be used on the boat, car, motorcycle, and camper van. With a rugged, ergonomic construction, and waterproof to IP65 standard, the portable charger has an intuitive control panel and a universal input (120-230 V) for total worldwide freedom.

Users can quickly select between 6 V (ideal for toys, classic cars and motorcycles) and 12 V operation. The unit includes 1.8m of DC cable that connects to either a 61cm lead with ring terminals, or a 61cm lead with alligator clips, for easy installation and a variety of applications; both leads are included in the package.

SKU: 43510400 Categories: , , , Tags: , ,

Description

Specification

  • General specifications
  • Total charge current 4.3 A
  • Recommended battery capacity: maintain 14 to 120 Ah
  • Recommended battery capacity: charge 14 to 90 Ah
  • Nominal input voltage 120/230 V (90-265 V), 50/60 Hz
  • AC connection 1.8 m (6 ft) cable + Euro plug (CEE7/16)
  • DC connection ring and alligator clip connections, with integrated fuse
  • Dimensions, hxwxd 161 x 72 x 43.7 mm
  • 6.3 x 2.8 x 1.7 inch
  • Weight 0.9 kg
  • 2,0 lb
  • Approvals CE, ABYC
  • Optional auch mit UK-Stecker, Art.-Nr. 43510402

Technical specifications

  • Charge characteristic IUoUo, automatic 3-step+ for Gel/AGM/flooded/Lithium Ion
  • Temperature range (ambient temp.) -20 °C to 40 °C
  • -4 °F to 104 °F
  • Protection degree IP65
  • Protections short circuit, reverse polarity, over voltage, current limited, over temperature
  • MasterBus compatible: no

Additional information

Product Details

Entry level model with Mastervolt 3-step+ charge characteristic.
Suitable for any type of battery, including Lithium Ion (model 4.3 A).
Full power up to 40 °C.
Includes cable & Euro plug (optionally also available with UK plug).
Simple switching between 6 V and 12 V.
Portable and waterproof.
Easy to connect through ring terminals, or alligator clips (included).
